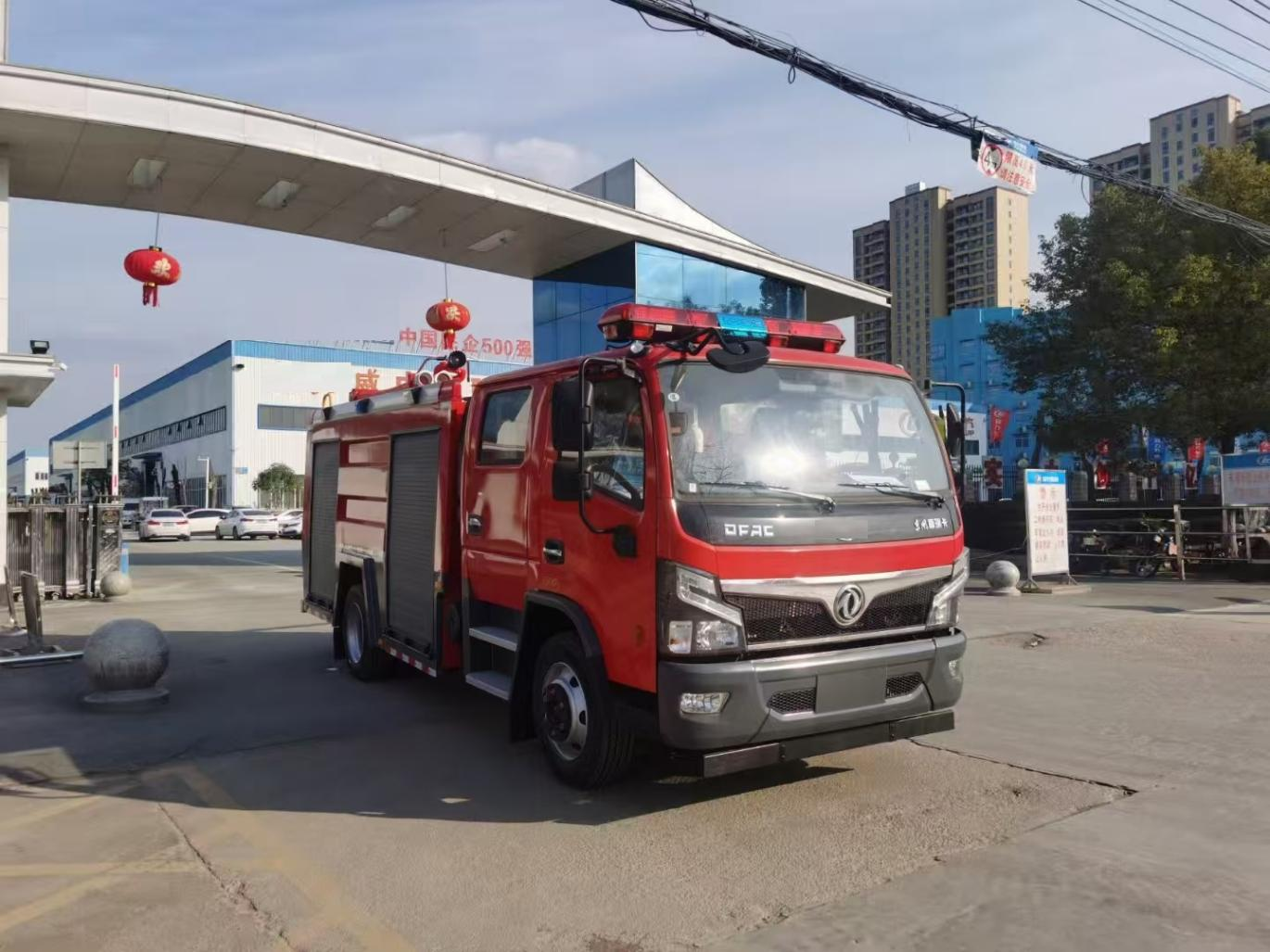

DONGFENG 4800L Fire Truck (Water Tank Fire Truck)
The DONGFENG 4800L Fire Truck is a reliable water tank fire fighting vehicle built on a Dongfeng chassis, powered by a Foton Cummins diesel engine with Euro V emission standard. It features a 3500 L water tank, a CB10/40 centrifugal fire pump delivering 40 L/s at 1.0 MPa, and a PS30 fire monitor with a range over 55 m and 360° rotation. The vehicle is designed for rapid response in urban, industrial, and rural fire fighting operations.
With a double-row cab for 3+3 passengers, the truck combines mobility, pumping capacity, and a complete set of fire fighting accessories. Its robust pipeline system and comprehensive equipment list ensure effective fire suppression and water delivery in demanding emergency situations.
2. Technical Parameters
| Parameter | Value |
|---|---|
| Whole Vehicle | |
| Overall Dimensions | 6960 × 2200 × 2810 mm |
| GVW | 11300 kg (approximate) |
| Curb Weight | 6050 kg (approximate) |
| Rated Load | 4800 kg (approximate) |
| Max Speed | 95 km/h |
| Leaf Spring (F/R) | 8/10+7 pcs |
| Drive Wheel | 4 × 2 |
| Chassis Model | EQ1125SJ |
| Manufacturer | Dongfeng Commercial Automobile Co., Ltd. |
| Wheel Base | 3800 mm |
| Tire Specification | 8.25R16 inch |
| No. of Tires | 6 + 1 spare |
| Engine | |
| Engine Type |
ISF3.8S5154 4 stroke water cooling, direct injection |
| Manufacturer | Foton Cummins Engine Co., Ltd. |
| Engine Fuel | Diesel |
| Engine Horsepower | 154 hp |
| Displacement | 3800 ml |
| Emission Standard | Euro V |
| Cab | |
| Allow Passenger | 3 + 3 |
| Row | Double |
| Water Tanker | |
| Capacity | 3500 L |
| Fire Fighting Pump | |
| Type | Centrifugal Pump |
| Model | CB10/40 |
| Pressure | 1.0 MPa |
| Flow Rate | 40 L/s |
| Section Depth | > 7 m |
| Section Time | < 30 seconds |
| Delivery Outlet | 65 mm |
| Fire Fighting Gun | |
| Model | PS30 |
| Pressure | 1 MPa |
| Flow Rate | 20 L/s |
| Range Distance | > 55 m |
| Rotary Angle | 360° |
| Pipeline System | |
| Inner Inlet Pipe | Φ100 mm one inlet pipe, from tanker to fire fighting pump. With Φ100 mm butterfly valve connecting water tanker and water pump. |
| Exterior Inlet Pipe | Both sides of the pump inlet pipe Φ100 mm, with straw, pull tooth and tube interface (plug seal); both sides of the pump directional drawing water suction pipe. |
3. Parts List
| No. | Name | Size | Unit | QTY |
|---|---|---|---|---|
| 1 | Suction Pipe | Φ100 × 2000 mm | pcs | 4 |
| 2 | Water Strainer | FLF100 | pcs | 1 |
| 3 | Water Spilt | FFS80 | pcs | 1 |
| 4 | Water Collector | FJ100-2B1-1.6 | pcs | 1 |
| 5 | Fire Hose | Φ65 × 20 m | roll | 6 |
| Fire Hose | Φ80 × 20 m | roll | 6 | |
| 6 | Interface | KT100 | pcs | 1 |
| 7 | Hose Bandage | FP470 | pcs | 4 |
| 8 | Hose Strap | FG600 | pcs | 4 |
| 9 | Hose Protector | FH80 | pcs | 2 |
| 10 | Overground Hydrant Wrench | FB450 | pcs | 2 |
| 11 | Underground Hydrant Wrench | FBA800 | pcs | 1 |
| 12 | Suction Wrench | FS100 | pcs | 4 |
| 13 | Powder-Type Extinguisher | MFZ2 | pcs | 1 |
| 14 | Fire Bucket | pcs | 1 | |
| 15 | Water-Stream Nozzle | QZG19 | pcs | 2 |
| 16 | Multifunctional Water Nozzle | QZW65 | pcs | 2 |
| 17 | Firemen's Axe | GFP890 | pcs | 2 |
| 18 | Fire Shovel | 2# | pcs | 2 |
| 19 | Crowbar | GT06 | pcs | 2 |
| 20 | Fire Hook | pcs | 1 | |
| 21 | Tool Box | pcs | 1 | |
| 22 | Fire Extinguisher | pcs | 1 |

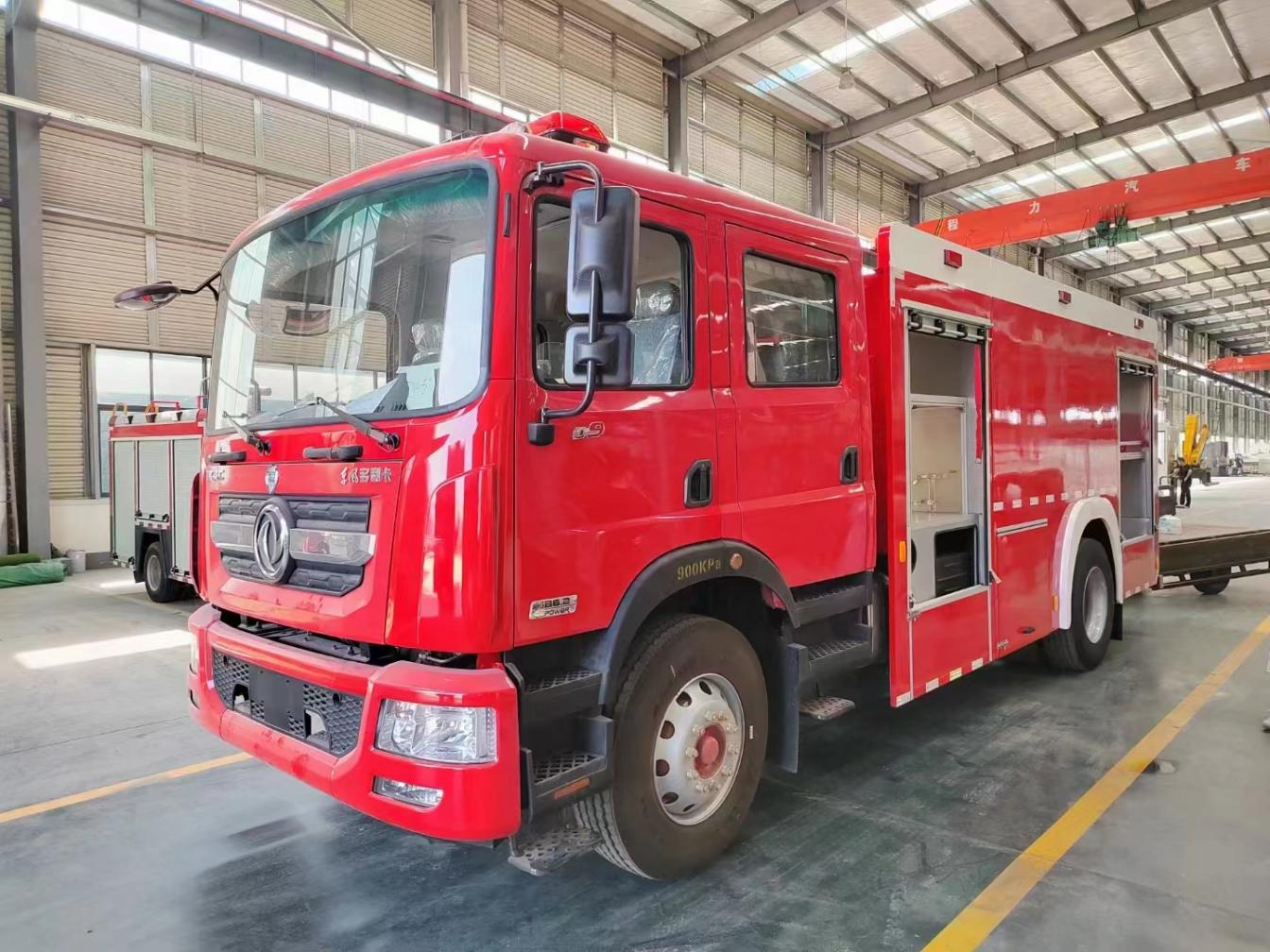

DONGFENG 8000L Fire Truck (Water Tank Fire Truck)
The DONGFENG 8000L Fire Truck is a powerful water tank fire fighting vehicle built on a Dongfeng chassis, powered by a Dongfeng Cummins Euro VI diesel engine producing 230 hp. It features an 8000 L water tank, a CB10/40 centrifugal fire pump delivering 40 L/s at 1.0 MPa, and a PS40 fire monitor with a range over 55 m and 360° rotation.
With a double-row cab for 3+3 passengers, it is designed for rapid response in urban and industrial fire fighting. The vehicle comes with a complete set of fire fighting accessories and a robust pipeline system for reliable emergency operations.
2. Technical Parameters
| Parameter | Value |
|---|---|
| Whole Vehicle | |
| Overall Dimensions | 8190 × 2510 × 3340 mm |
| GVW | 18000 kg (approximate) |
| Curb Weight | 9800 kg (approximate) |
| Rated Load | 8000 kg (approximate) |
| Max Speed | 95 km/h |
| Leaf Spring (F/R) | 21/11 pcs |
| Drive Wheel | 4 × 2 |
| Chassis Model | EQ1185DJ9CDF |
| Manufacturer | Dongfeng Commercial Automobile Co., Ltd. |
| Wheel Base | 4700 mm |
| Tire Specification | 10.00R20 inch |
| No. of Tires | 6 + 1 spare |
| Engine | |
| Engine Type |
B6.2NS6B230 4 stroke water cooling, direct injection |
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Fuel | Diesel |
| Engine Horsepower | 230 hp |
| Displacement | 6200 ml |
| Emission Standard | Euro VI |
| Cab | |
| Allow Passenger | 3 + 3 |
| Row | Double |
| Water Tanker | |
| Capacity | 8000 L |
| Fire Fighting Pump | |
| Type | Centrifugal Pump |
| Model | CB10/40 |
| Pressure | 1.0 MPa |
| Flow Rate | 40 L/s |
| Section Depth | > 7 m |
| Section Time | < 30 seconds |
| Delivery Outlet | 65 mm |
| Fire Fighting Gun | |
| Model | PS40 |
| Pressure | 1 MPa |
| Flow Rate | 40 L/s |
| Range Distance | > 55 m |
| Rotary Angle | 360° |
| Pipeline System | |
| Inner Inlet Pipe | Φ100 mm one inlet pipe, from tanker to fire fighting pump. With Φ100 mm butterfly valve connecting water tanker and water pump. |
| Exterior Inlet Pipe | Both sides of the pump inlet pipe Φ100 mm, with straw, pull tooth and tube interface (plug seal); both sides of the pump directional drawing water suction pipe. Φ100 × 2 m (4 pieces). |
| Other Features | |
| Equipment | 80W alarm light, rotating lights switch, PTO control switch, one manhole, overflow valve, fluid level indicator, effluent discharge inlet, long rows of lights, fire ground light (12V, 60W) |
3. Parts List
| No. | Name | Size | Unit | QTY |
|---|---|---|---|---|
| 1 | Suction Pipe | Φ100 × 2000 mm | pcs | 4 |
| 2 | Water Strainer | FLF100 | pcs | 1 |
| 3 | Water Spilt | FFS80 | pcs | 1 |
| 4 | Water Collector | FJ100-2B1-1.6 | pcs | 1 |
| 5 | Fire Hose | Φ65 × 20 m | roll | 6 |
| Fire Hose | Φ80 × 20 m | roll | 6 | |
| 6 | Interface | KT100 | pcs | 1 |
| 7 | Hose Bandage | FP470 | pcs | 4 |
| 8 | Hose Strap | FG600 | pcs | 4 |
| 9 | Hose Protector | FH80 | pcs | 2 |
| 10 | Overground Hydrant Wrench | FB450 | pcs | 2 |
| 11 | Underground Hydrant Wrench | FBA800 | pcs | 1 |
| 12 | Suction Wrench | FS100 | pcs | 4 |
| 13 | Powder-Type Extinguisher | MFZ2 | pcs | 1 |
| 14 | Fire Bucket | pcs | 1 | |
| 15 | Water-Stream Nozzle | QZG19 | pcs | 2 |
| 16 | Multifunctional Water Nozzle | QZW65 | pcs | 2 |
| 17 | Firemen's Axe | GFP890 | pcs | 2 |
| 18 | Fire Shovel | 2# | pcs | 2 |

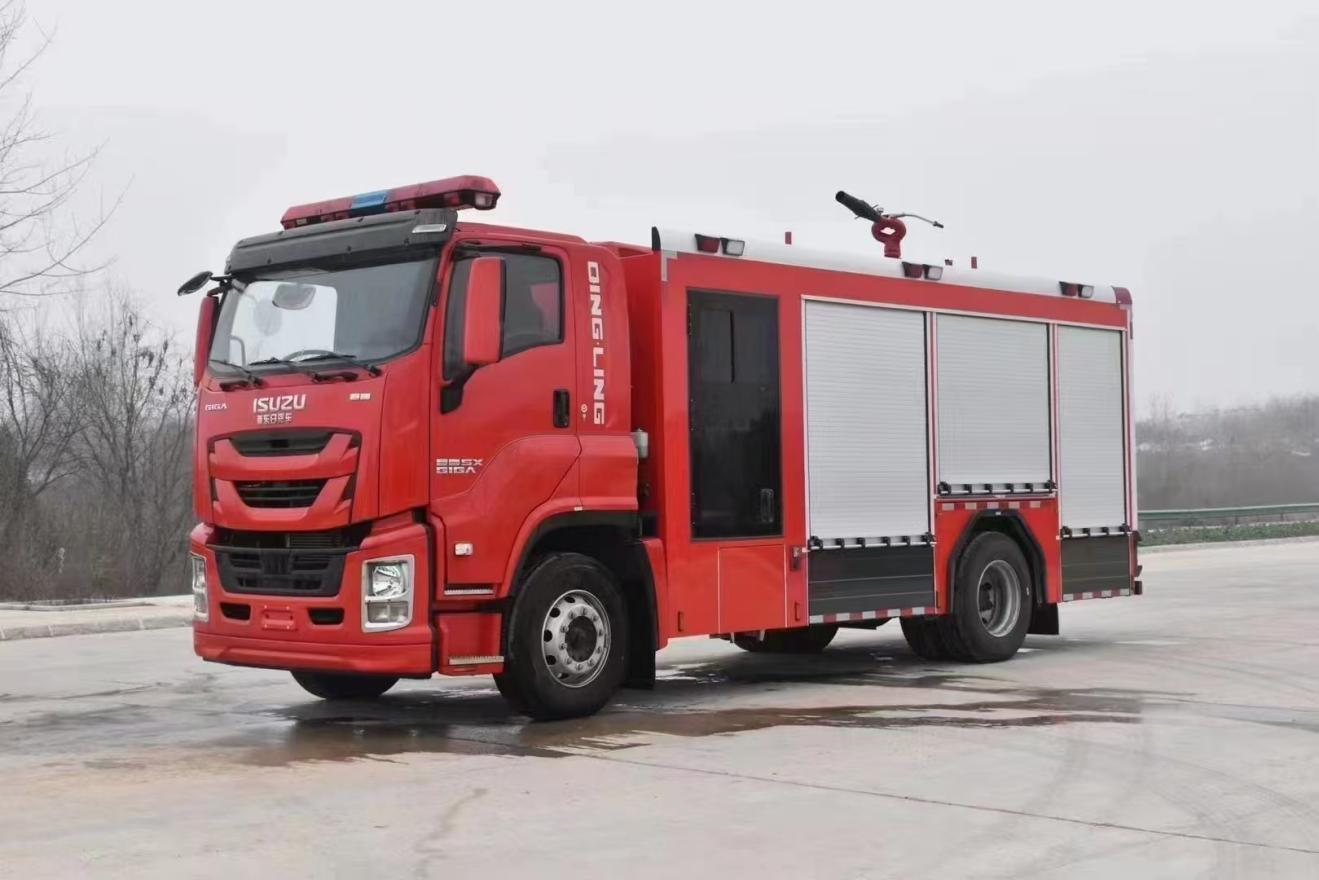

ISUZU 6000L Foam Fire Truck
The ISUZU 6000L Foam Fire Truck is a professional fire fighting vehicle built on a reliable ISUZU chassis, powered by a Euro VI diesel engine producing 240 hp. It features a 6000 L water tank, a CB10/40 centrifugal fire pump delivering 40 L/s at 1.0 MPa, and a PS40 fire monitor with a range over 55 m and 360° rotation.
With a one-and-a-half-row cab and an independent passenger compartment for 2+3 personnel, it is designed for rapid response in urban and industrial fire fighting. The vehicle comes with a complete set of fire fighting accessories and a robust pipeline system for reliable foam and water delivery in emergency operations.
2. Technical Parameters
| Parameter | Value |
|---|---|
| Whole Vehicle | |
| Overall Dimensions | 8160 × 2540 × 3750 mm |
| GVW | 16900 kg (approximate) |
| Curb Weight | 10450 kg (approximate) |
| Rated Load | 6000 kg (approximate) |
| Max Speed | 95 km/h |
| Leaf Spring (F/R) | 17/12 pcs |
| Drive Wheel | 4 × 2 |
| Chassis Model | QL1180EQFRY |
| Manufacturer | Qingling (ISUZU) Motors Co., Ltd. |
| Wheel Base | 4500 mm |
| Tire Specification | 295/80R22.5 16PR inch |
| No. of Tires | 6 + 1 spare |
| Engine | |
| Engine Type |
6HK1-TCG61 4 stroke water cooling, direct injection |
| Manufacturer | ISUZU (China) Engine Co., Ltd |
| Engine Fuel | Diesel |
| Engine Horsepower | 240 hp |
| Displacement | 7790 ml |
| Emission Standard | Euro VI |
| Cab | |
| Allow Passenger | 2 + 3 |
| Row | One and a half rows and an independent passenger compartment |
| Water Tanker | |
| Capacity | 6000 L |
| Fire Fighting Pump | |
| Type | Centrifugal Pump |
| Model | CB10/40 |
| Pressure | 1.0 MPa |
| Flow Rate | 40 L/s |
| Section Depth | > 7 m |
| Section Time | < 30 seconds |
| Delivery Outlet | 65 mm |
| Fire Fighting Gun | |
| Model | PS40 |
| Pressure | 1 MPa |
| Flow Rate | 40 L/s |
| Range Distance | > 55 m |
| Rotary Angle | 360° |
| Pipeline System | |
| Inner Inlet Pipe | Φ100 mm one inlet pipe, from tanker to fire fighting pump. With Φ100 mm butterfly valve connecting water tanker and water pump. |
| Exterior Inlet Pipe | Both sides of the pump inlet pipe Φ100 mm, with straw, pull tooth and tube interface (plug seal); both sides of the pump directional drawing water suction pipe. Φ100 × 2 m (4 pieces). |
| Equipment | |
| Features | 80W alarm light, rotating lights switch, PTO control switch, one manhole, overflow valve, fluid level indicator, effluent discharge inlet, long rows of lights, fire ground light (12V, 60W) |
3. Parts List
| No. | Name | Size | Unit | QTY |
|---|---|---|---|---|
| 1 | Suction Pipe | Φ100 × 2000 mm | pcs | 4 |
| 2 | Water Strainer | FLF100 | pcs | 1 |
| 3 | Water Spilt | FFS80 | pcs | 1 |
| 4 | Water Collector | FJ100-2B1-1.6 | pcs | 1 |
| 5 | Fire Hose | Φ65 × 20 m | roll | 6 |
| Fire Hose | Φ80 × 20 m | roll | 6 | |
| 6 | Interface | KT100 | pcs | 1 |
| 7 | Hose Bandage | FP470 | pcs | 4 |
| 8 | Hose Strap | FG600 | pcs | 4 |
| 9 | Hose Protector | FH80 | pcs | 2 |
| 10 | Overground Hydrant Wrench | FB450 | pcs | 2 |
| 11 | Underground Hydrant Wrench | FBA800 | pcs | 1 |
| 12 | Suction Wrench | FS100 | pcs | 4 |
| 13 | Powder-Type Extinguisher | MFZ2 | pcs | 1 |
| 14 | Fire Bucket | pcs | 1 | |
| 15 | Water-Stream Nozzle | QZG19 | pcs | 2 |
| 16 | Multifunctional Water Nozzle | QZW65 | pcs | 2 |
| 17 | Firemen's Axe | GFP890 | pcs | 2 |
| 18 | Fire Shovel | 2# | pcs | 2 |
| 19 | Crowbar | GT06 | pcs | 2 |
| 20 | Fire Hook | pcs | 1 | |
| 21 | Tool Box | pcs | 1 | |
| 22 | Fire Extinguisher | pcs | 1 |

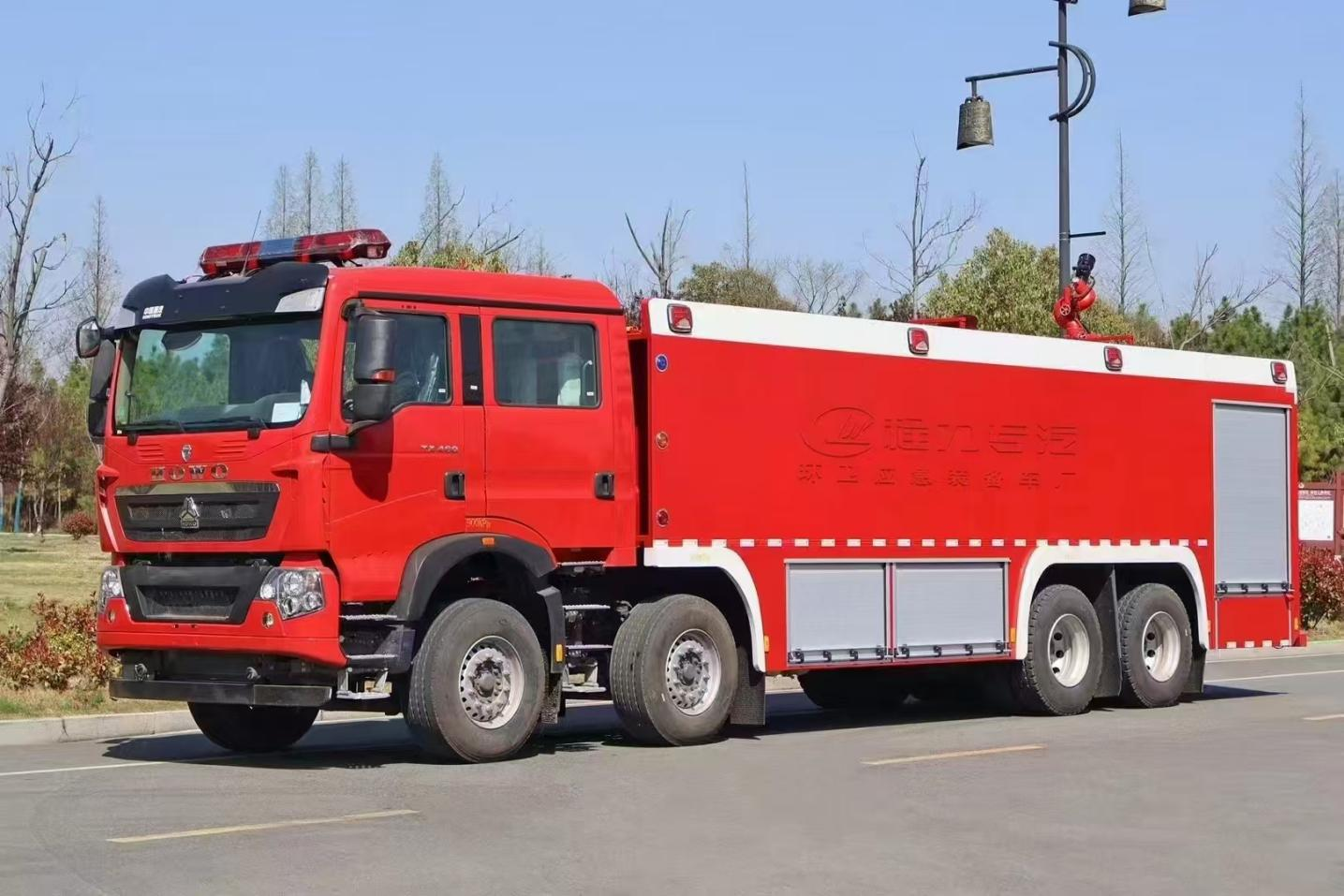

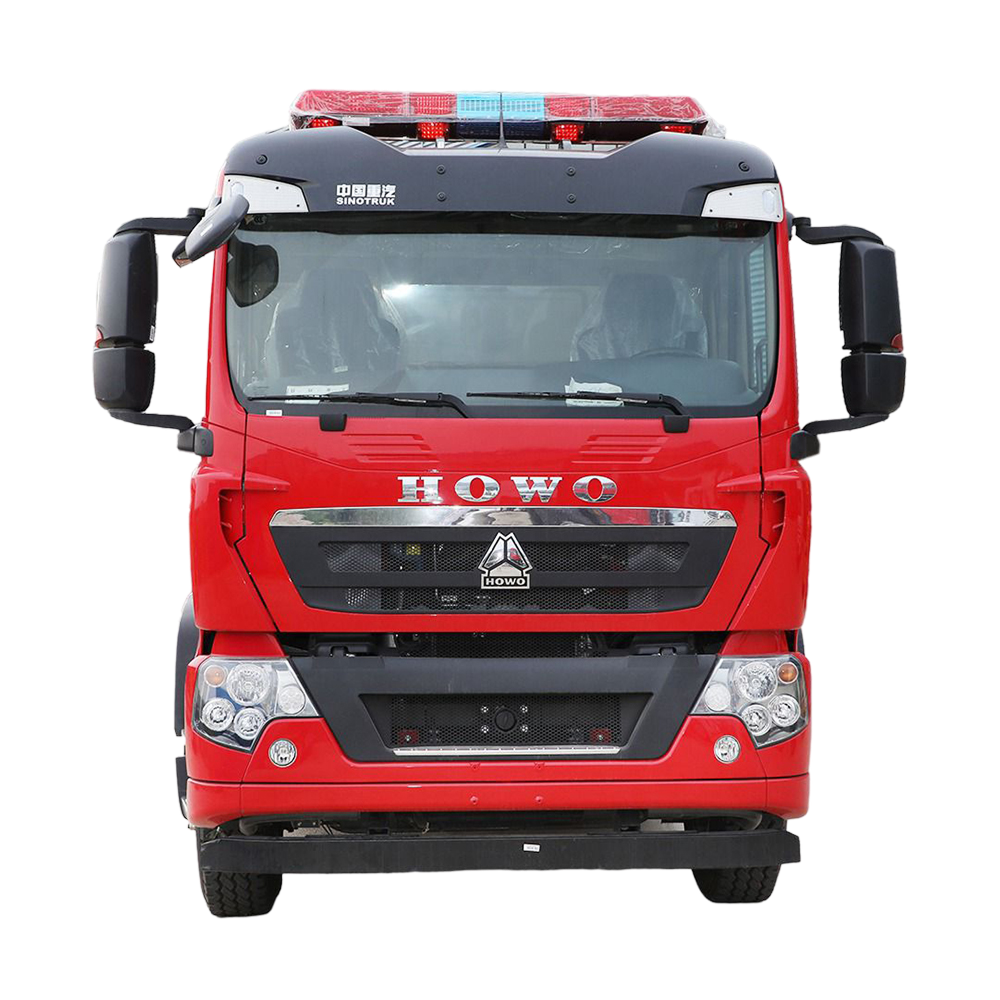

SINOTRUK HOWO 24800L Fire Truck (Water Tank Fire Truck)
The SINOTRUK HOWO 24800L Fire Truck is a heavy-duty water tank fire fighting vehicle built on a reliable SINOTRUK HOWO chassis, powered by a Euro VI diesel engine producing 460 hp. It features a massive 24800 L water tank, a CB10/100 centrifugal fire pump delivering 60 L/s at 1.0 MPa, and a PS80 fire monitor with a range over 70 m and 360° rotation.
With a double-row cab for 2+4 passengers, it is designed for large-scale fire fighting operations in urban, industrial, and remote areas. The vehicle comes with a complete set of fire fighting accessories and a robust pipeline system for reliable water delivery in demanding emergency situations.
2. Technical Parameters
| Parameter | Value |
|---|---|
| Whole Vehicle | |
| Overall Dimensions | 11990 × 2550 × 3560 mm |
| GVW | 42450 kg (approximate) |
| Curb Weight | 17200 kg (approximate) |
| Rated Load | 24800 kg (approximate) |
| Max Speed | 100 km/h |
| Leaf Spring (F/R) | 11/9+8 pcs |
| Drive Wheel | 4 × 2 |
| Chassis Model | ZZ5447TXFV466MF5 |
| Manufacturer | SINOTRUK Group Jinan Truck Co., Ltd. |
| Wheel Base | 1950 + 4600 + 1400 mm |
| Tire Specification | 12.00R20 inch |
| No. of Tires | 12 + 1 spare |
| Engine | |
| Engine Type |
MC11.46-61 4 stroke water cooling, direct injection |
| Manufacturer | SINOTRUK Group Co., Ltd. |
| Engine Fuel | Diesel |
| Engine Horsepower | 460 hp |
| Displacement | 10518 ml |
| Emission Standard | Euro VI |
| Cab | |
| Allow Passenger | 2 + 4 |
| Row | Double rows |
| Water Tanker | |
| Capacity | 24800 L |
| Fire Fighting Pump | |
| Type | Centrifugal Pump |
| Model | CB10/100 |
| Pressure | 1.0 MPa |
| Flow Rate | 60 L/s |
| Section Depth | > 7 m |
| Section Time | < 35 seconds |
| Delivery Outlet | 65 mm |
| Fire Fighting Gun | |
| Model | PS80 |
| Pressure | 1 MPa |
| Flow Rate | 80 L/s |
| Range Distance | > 70 m |
| Rotary Angle | 360° |
| Pipeline System | |
| Inner Inlet Pipe | Φ100 mm one inlet pipe, from tanker to fire fighting pump. With Φ100 mm butterfly valve connecting water tanker and water pump. |
| Equipment | |
| Features | 80W alarm light, rotating lights switch, PTO control switch, one manhole, overflow valve, fluid level indicator, effluent discharge inlet, long rows of lights, fire ground light (12V, 60W) |
3. Parts List
| No. | Name | Size | Unit | QTY |
|---|---|---|---|---|
| 1 | Suction Pipe | Φ100 × 2000 mm | pcs | 4 |
| 2 | Water Strainer | FLF100 | pcs | 1 |
| 3 | Water Split | FFS80 | pcs | 1 |
| 4 | Water Collector | FJ100-2B1-1.6 | pcs | 1 |
| 5 | Fire Hose | Φ65 × 20 m | roll | 6 |
| Fire Hose | Φ80 × 20 m | roll | 6 | |
| 6 | Interface | KT100 | pcs | 1 |
| 7 | Hose Bandage | FP470 | pcs | 4 |
| 8 | Hose Strap | FG600 | pcs | 4 |
| 9 | Hose Protector | FH80 | pcs | 2 |
| 10 | Overground Hydrant Wrench | FB450 | pcs | 2 |
| 11 | Underground Hydrant Wrench | FBA800 | pcs | 1 |
| 12 | Suction Wrench | FS100 | pcs | 4 |
| 13 | Powder-Type Extinguisher | MFZ2 | pcs | 1 |
| 14 | Fire Bucket | pcs | 1 | |
| 15 | Water-Stream Nozzle | QZG19 | pcs | 2 |
| 16 | Multifunctional Water Nozzle | QZW65 | pcs | 2 |
| 17 | Firemen's Axe | GFP890 | pcs | 2 |
| 18 | Fire Shovel | 2# | pcs | 2 |
| 19 | Crowbar | GT06 | pcs | 2 |
| 20 | Fire Hook | pcs | 1 | |
| 21 | Tool Box | pcs | 1 | |
| 22 | Fire Extinguisher | pcs | 1 |
